Which Is The Best Diesel Fuel Racor Filter Water Separator

MAXIMUM FLOW RATE: 60 GPH (227 LPH)
FILTER RATING: 2, 10, and 30 micron
PORT/CONNECTION SIZE: M14*1.5
ADDITIONAL DETAIL: 15 PSI (1.03 bar) Max Pressure

Item specifics:
PRODUCT TYPE : Filter Fuel/water Separator
-This listing is for one (1) unit. This is a new For Racor R12T Marine Fuel Filter / Water Separator complete assembly.
Product Type Filter Fuel/Water Separator
Description Replacement Fuel Filter/Water Separator
-Maximum Flow Rate 15 GPH (57 LPH)
-Filter Rating 10 Micron
-Port/Connecting Size M18 X 1.5 Center Thread
-Additional Detail Used In Model 120A Filter Assembly
Dont’ be caught in the water without one of these diesel spin-on filters. filters are designed for high performance applications, and with flow rate of 15 GPH on the R12T model, your engine will perform better than ever with clean, water-free fuel. These filter units are coated with a durable electrostatically applied powder coating for superior corrosion resistance. The unit features Racor’s famous Aquabloc II technology. This spin-on filter design is simple to replace and the reusable clear plastic collection bowl and features a self-venting drain for removing unwanted muck and water.

If you have difficulty in installing, you can go to YouTube to find the appropriate installation video:https://www.youtube.com/watch?v=LyeqTDVzY-A.

Specification:
1.Fuel Water Separating Filter fit 3/8 Inch NPT Outboard Motors as well.
2.Maximum Flow Rate 30 GPH (57 LPH).
3.Port / Connecting Size M18 X 1.5 Center Thread.
4.These are more suited to compact off road diesel equipment:tractors,skid steers loaders,movers.
5.Filter Rating 10 Micron.10 micron filters are over 90% efficient at removing particles as small as 10 microns. 10 micron filters are recommended to prevent damage to sensitive inboard, sterndrive and outboard fuel injection systems, Designed to trap the smallest particles and emulsified water from Diesel.

Product details:
1.Don’t be caught in the water without one of these Diesel spin-on filters.
2.Filters are designed for high performance applications, and with flow rate of 30 GPH on the R12T model, your engine will perform better than ever with clean, water-free Fuel.
3.The inlet and out let can be feed in on the same side or in one side out the other side.
4.Check and replace regularly.

R12T water separator and filter complete combo installation instruction:
1.Nylon collection bowl down when installed the water separator and filter.
2.This filter has four ports, two inputs and two outputs. We provide two plugs for the extra two ports. If you need to use two plugs, you must install them to the filter and tighten them.
3.Before installing the filter, you have to remove those plugs, teflon-tape them, and re-install them.Prevent leaks from these plugs.
4.All of the above steps are very simple to operate, you can manually disassemble, and then use the tool to install tighten.

CASE OF 12 NEW RACOR 2020SM (10 MICRON) REPLACEMENT FILTERS FOR 1000 SERIES TURBINE FUEL FILTER WATER SEPARATOR SYSTEM

UTSAUTO R12T Fuel Filter Water Separator

Specification:

• Fuel Water Separating Filter fit 3/8 Inch NPT Outboard Motors as well.
• Maximum Flow Rate 30 GPH (57 LPH).
• Port / Connecting Size M18 X 1.5 Center Thread.
• These are more suited to compact off road diesel equipment:tractors,skid steers loaders,movers.
• Filter Rating 10 Micron.10 micron filters are over 90% efficient at removing particles as small as 10 microns. 10 micron filters are recommended to prevent damage to sensitive inboard, sterndrive and outboard fuel injection systems, Designed to trap the smallest particles and emulsified water from Diesel.

Feature:

1. Don’t be caught in the water without one of these Diesel spin-on filters.
2. Filters are designed for high performance applications, and with flow rate of 30 GPH on the R12T model, your engine will perform better than ever with clean, water-free Fuel.
3. The inlet and out let can be feed in on the same side or in one side out the other side.
4. Check and replace regularly.

R12T Water separator & filter complete combo installation instruction:

1. Nylon collection bowl down when installed the water separator and filter.
2. This filter has four ports, two inputs and two outputs. We provide two plugs for the extra two ports.
3. If you need to use two plugs, you must install them to the filter and tighten them.
4. Before installing the filter, you have to remove those plugs, teflon-tape them, and re-install them.Prevent leaks from these plugs.
5. All of the above steps are very simple to operate, you can manually disassemble, and then use the tool to install tighten.

Replaces Mercury 35-60494-1 and Universal.

How use?
1.Before installing the filter, please check those Tubing and plugs,PTFE-tape is use to Prevent leaks from these plugs.
tips:1m PTFE-tape include.
2,install the plugs,Connect the fuel pipe and use the Hose Clamp to lock.
3.All of the above steps are very simple to operate, you can manually disassemble, and then use the tool to install tighten.

replace element:
1.Drain the unit by loosens the drain screw.
2.Loosen and remove the filter element.
Please ensure that the assembly is stable.
3.Loosen and remove the bowl from filter element.Please note the bowl is reusable,do not dispose unless broken.
(Professional tools may be required to remove bowls and filter element)
4.Wipe O-ring gland clean,and coat bowl’s sealing O-ring with clean oil or grease and place it back to the gland.The tighten the bowl onto filter element firmly by hand.
5.Coat filter element’s sealing O-ring with clean oil or grease and attach filter element onto filter head,and the tighten securely by hand.
6.Run engine and check for fuel leakage.

Instructions
To Drain Water:
1.off engine,Loosen drain screw to drain bowl of water.
2.Tighten drain screw.
3.Run engine and check for fuel leakage.
Warning:
Periodically check fittings and filter element for leaks.Be careful when changing fuel filter element .Gasoline is extremely flammable and highly explosive under certain conditions.Avoid spilling gasoline.Always stop engine and do not smoke or allow open flames in the area while changing filter element.

Tips:
replace element by tool
replace element at regular.
CHECK THE ELEMENT SUGGEST:EACH 7000KM/400 HOURS.

Package include:
1 IVSPEED S3213 assy
1*1M PTFE tape
1*Memo sticker for time or KM when use
2*Miniature Stainless Worm Gear Hose Clamp
1*Manual(some mode)

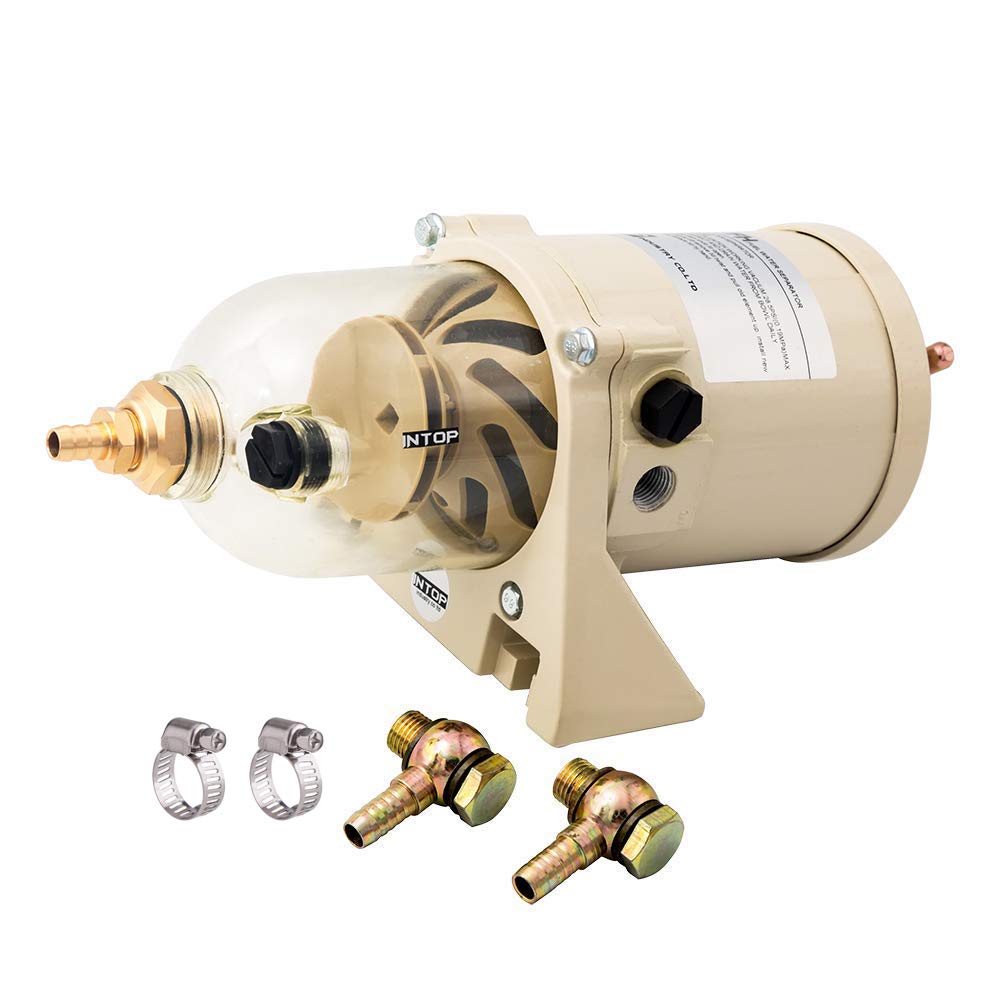

PRODUCT TYPE :
Filter Fuel/water Separator

DESCRIPTION:
Fuel Filter/Water Separator – Metric
MAXIMUM FLOW RATE: 60 GPH (227 LPH)
FIT FILTER RATING: 2, 10, and 30 micron
FIT ELEMENTS 2010 SM/TM/PM
PORT/CONNECTION SIZE: 3/4-16
ADDITIONAL DETAIL: 15 PSI (1.03 bar) Max Pressure
ELEMENTS: 2010PM(INCLUDE)

OEM & aftermarket spare parts
Brass drain outlet (anti-blocking design)
durable bowl (heat-resistant,cold-resistant and durable)
turbine design (saving & Environment)
good mount (easy operate)
seamless body (saving & Environment)

HOW TO WORK
separator filter the particles,impurities,moisture which will enter engine fuel system.after add the separator,the multi-stage filtration can avoid the damage for the diesel high pressure common rail system.reduce the maintenance cost,extend system life.
TIPS:
water in fuel can cause damage to the fuel system.
To Protect Your Engine.
Please drain regularly.
Before draining.
Please turn off the engine.
Clean Fuel is appeared then Close Drain.
ADD SEAL TO SLOVE THE SPACE WORRIED
for better effect.
Please check replace the element at regular.

SUGGEST:
EACH 7000KM CHECK THE ELEMENT.
500FG/FH
FLOW RATE:227L/H
ELEMENTS: 2010
USE FOR 2-4L Diesel engine

PACKAGE INCLUDE

500FG+2010PM(INSIDE)+Connect+2*Miniature All Stainless Worm Gear Hose Clamp

Spin-on series diesel filter/water separators were designed with the marine engine in mind. Compact in size, they utilize a flexible mounting head for remote or on engine mounting. Ideal for tight engine compartments. Filtration options provide for a variety of micron ratings and ensure virtually 100% removal of water and solid contaminants for diesel engines. Flow rate: 15 GPH Element: R12 Size LWD”: 5.7 X 3.2 X 3.2

Conclusion

By our suggestions above, we hope that you can found diesel fuel racor filter water separator for you.Please don’t forget to share your experience by comment in this post. Thank you!
